How to Attach the End Post of Premium Steel Fencing to the Brick Entry

Are you planning to create a stunning entryway and want to attach an end post to your brick entry but aren’t quite sure where to start? This task might seem tough, especially if you’re new to the engineered system of Premium steel fencing or DIY fence installation. However, with a bit of patience and the right approach, you can achieve a beautiful entrance for your property.



At Stock & Noble, we provide the finest fencing solutions to high-end properties across Australia and New Zealand. Premium Steel Post and Rail Fencing is our flagship product and we’ve helped numerous clients build entryways for their signature properties using our fencing.



In this blog, we’ll help you with the step-by-step process to attach a steel end post to your brick entry securely. You’ll know the tools needed and the best method to follow for building a strong and good-looking entryway that matches your vision.



Tools and Materials You’ll Need

Here’s a list of tools and materials you’ll need for this project:

  • Drill
  • Drill bits
  • Reo/Rebar reinforcing
  • Threaded rod
  • Concrete mix
  • Mixing bucket or wheelbarrow
  • Measuring tape
  • Level
  • Safety gear (gloves, goggles, mask)



Step-by-Step Guide to Attaching the End Post

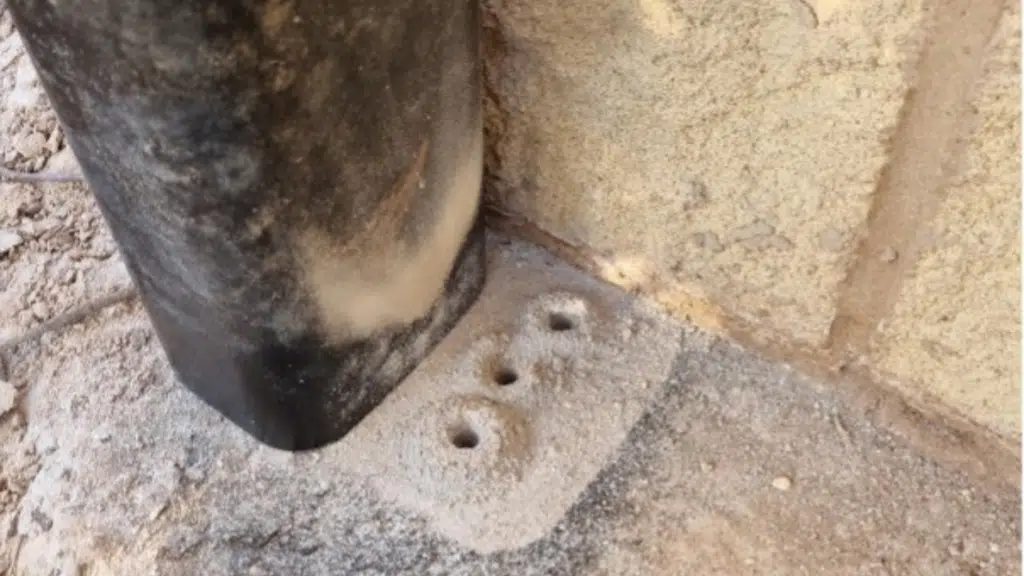

Step 1: Drill Hole in Concrete Footing

The first step is to drill a hole in the concrete footing. This hole will anchor the reo, which in turn will support your end post. Here’s how to do it:



1. Mark the Spot:

Use a marker or chalk to mark the spot where you want to drill the hole. Ensure it’s precisely where the end post will be placed.



2. Drill the Hole:

Using a drill and the appropriate drill bit, create a hole in the concrete footing. The hole should be deep enough to accommodate the reo and provide sturdy support.

Drill holes for Reo - fence install

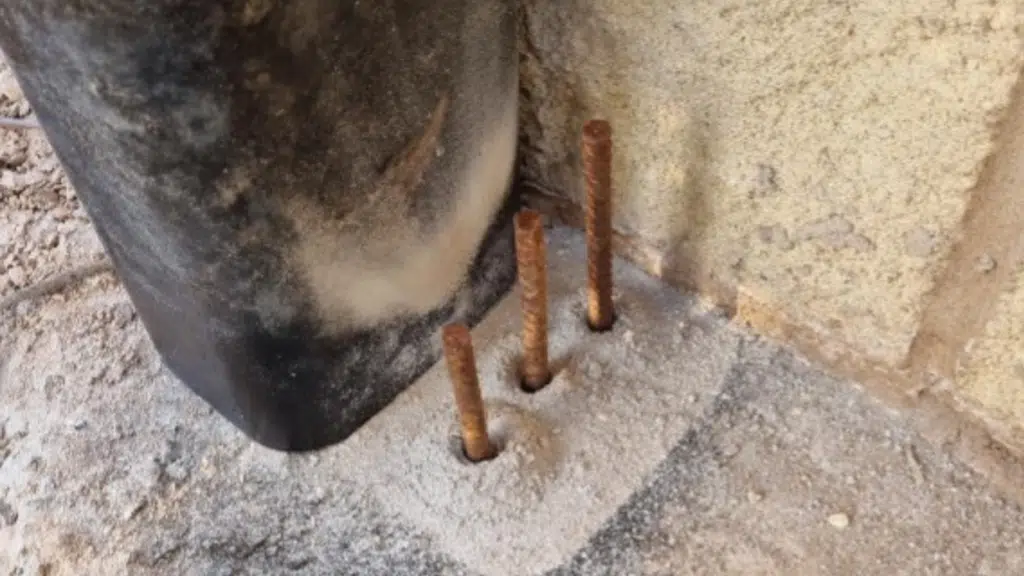

3. Insert Reo:

Cut 3 or 4 pieces of reo to the appropriate length. Insert these pieces into the hole you’ve just drilled. The reo will reinforce the concrete and provide extra stability for the end post.

Tip: Use a hammer to tap the reo into the hole if it’s a tight fit. This ensures they are securely embedded.



Insert Reinforced bars - fence install - reo



Step 2: Position and Secure the Post

With the reo in place, it’s time to position and secure the post:



1. Place the Post Over the Reo:

Carefully position the end post over the rebar. The post should slide over the reo smoothly. Ensure it’s straight and in the correct position.

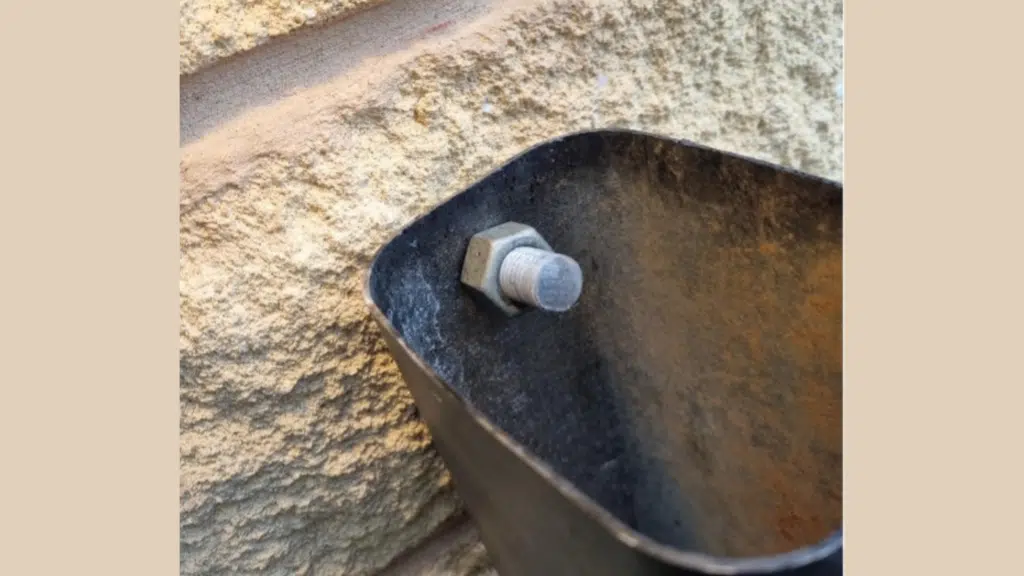

2. Use a Threaded Rod Coated with Epoxy:

To secure the top of the post, drill a hole into the top of the post and also into the brick pillar.  Insert the short length of the threaded rod into the brick pillar once filled with ReoSet 502 Plus Chemset Epoxy Once the threaded rod is set place the post and tighten the nut.

Note:  Ensure there is a 10mm packer between the post and brick pillar so there is a sufficient gap for the post cap to slide over top once complete.

Fence install - brick entrance



3. Leave a Gap for the Cap:

Make sure to leave a small gap at the top of the post. This gap is necessary to fit the cap on later. Without this gap, you might have trouble securing the cap properly.

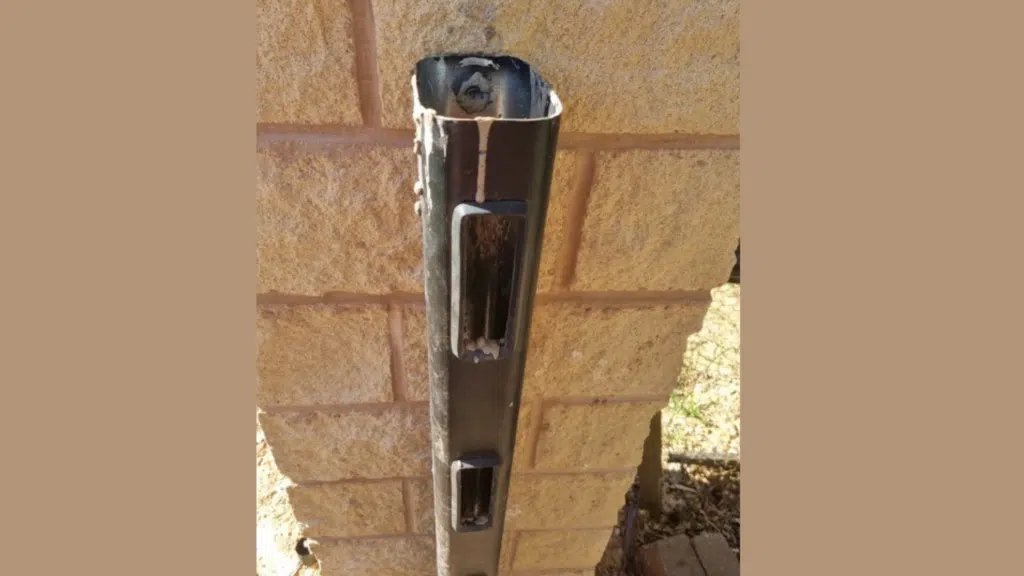

Step 3: Pour Concrete Inside the Post

The final step is to fill the inside of the post with concrete, finishing the concrete level just below the bottom rail slot. This will secure the bottom of the post, firmly tying it to the brick pillar footing.



1. Mix the Concrete:

Prepare your concrete mix according to the manufacturer’s instructions. Use a mixing bucket or wheelbarrow to combine the mix with water until it reaches the right consistency. You may want to do the mix slightly runnier than normal so you can pour it down the top of the post.

You can learn more about the cost, method and steps to mix concrete for installation.



2. Pour the Concrete:

Carefully pour the wet concrete down inside the post. Fill it up to the top of the bottom rail. This will help the post stay in place and provide additional support.

Tip: Allow the concrete to cure properly before applying any additional pressure or weight to the post. This can take up to 24-48 hours, depending on the concrete mix and weather conditions.

Pour concrete - fence install



Additional Tips and Considerations

Check for Level:

Throughout the process, use a level to ensure your post is perfectly vertical. A crooked post will look terrible against a vertical pillar!

Safety First:

Always wear appropriate safety gear.

Quality Materials:

Invest in high-quality materials. Never use rapid set for installation of Premium Steel Post and Rail Fencing.

Check out the pro tips on the most common mistakes to avoid while installing a post and rail fence yourself.



Ready to Attach and End Post to your Brick Entry?

Overall installing Premium Steel Post and Rail Fencing is a simple process, especially if you have some prior experience in fence installation. However, attaching our steel end post to a brick entry is a task that requires careful planning and execution. By following these detailed steps, you can ensure your post is securely attached and built to last.



Remember, the key to a successful project is in the preparation and attention to detail. Take your time, use the right materials, and you’ll have a sturdy, beautiful-looking end post that enhances the overall look of your property and the safety of your structure.



If you have more questions related to installing Premium Steel Post and Rail Fencing, do check out our FAQs. For a specific query, reach out to our fencing experts. They will help you every step of the way from choosing the right fencing to ensuring it’s perfectly installed. We’ll do everything to make your dream of a beautiful property come true.
