Premium Steel Fence Schematics

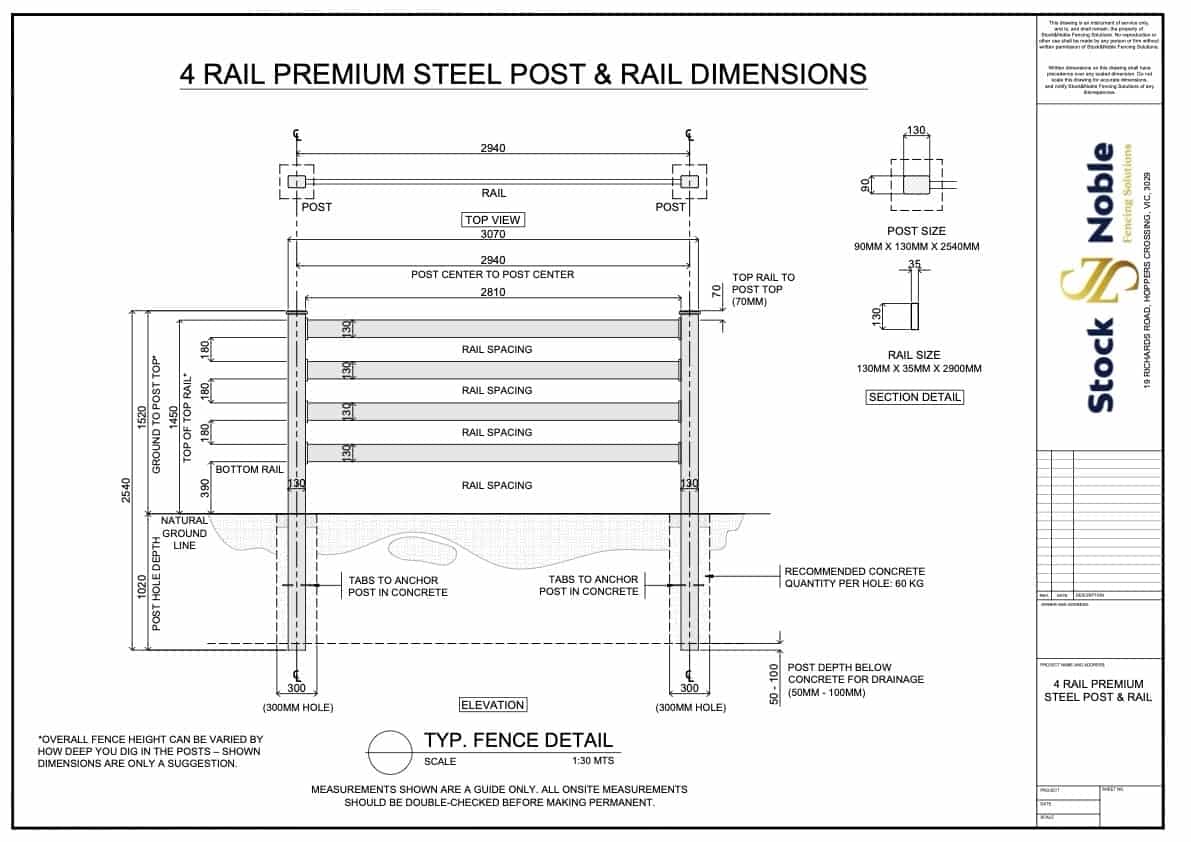

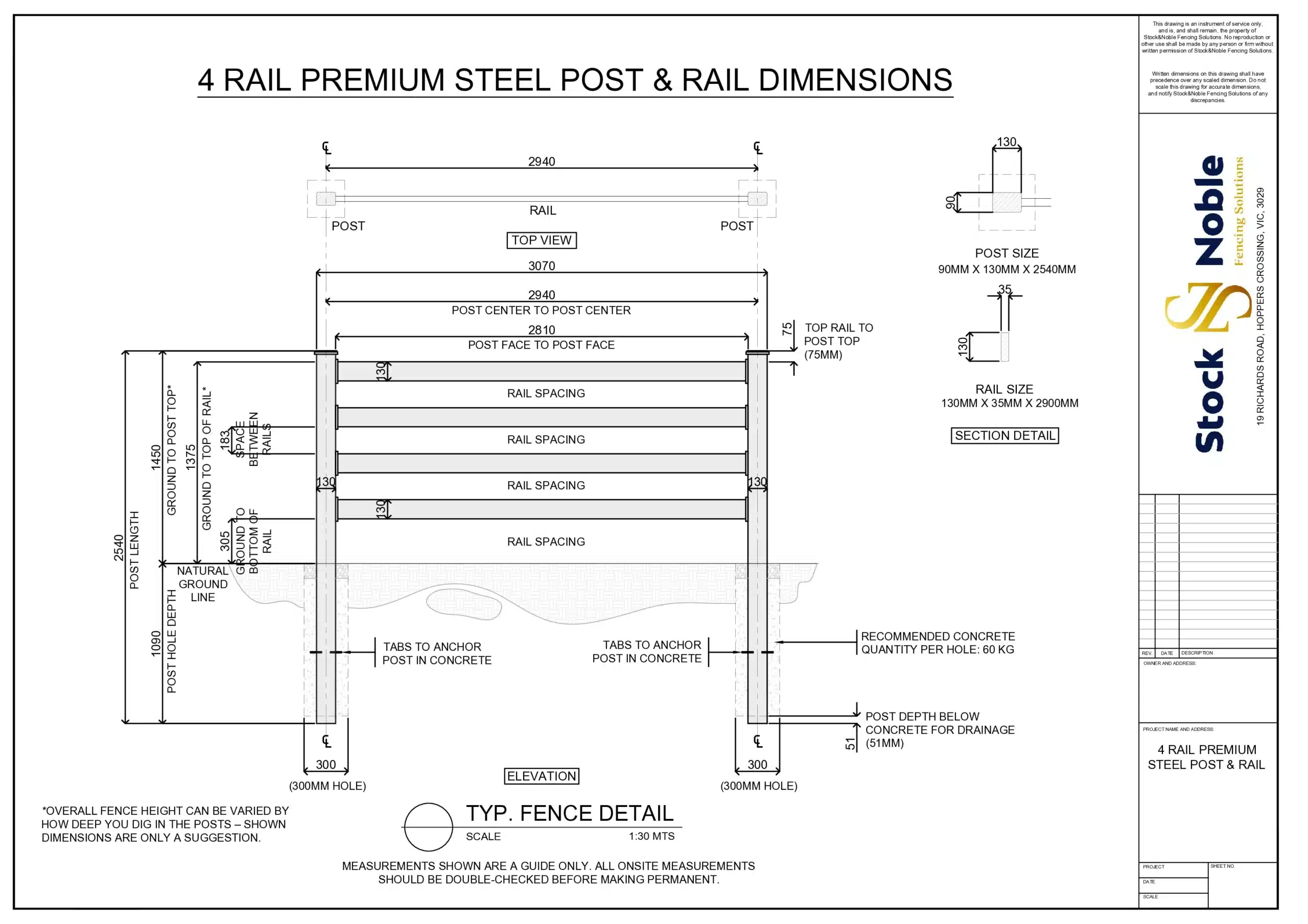

Premium steel fence schematics give you a clear, straightforward view of how your fence comes together. Each drawing shows the essential details like post size, rail spacing, hole depth, gate layout, and recommended fence height. They take the guesswork out of planning and help you understand exactly what’s needed for a strong, well-built fence.

Whether you’re a contractor or planning the job yourself, these schematics make it easy to work out how many posts and rails you need, check your spacing, and plan your layout before you start. Feel free to download the schematics for 1-rail, 2-rail, 3-rail and 4-rail Premium Steel Post and Rail Fencing as needed.

We also provide detailed fence designs and plans based on your project. Please connect with our fencing expert to request one.
